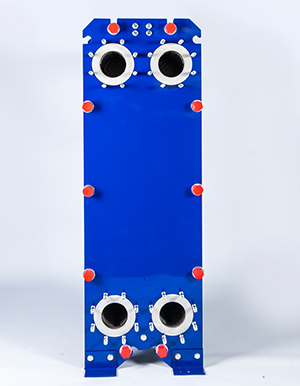

Double wall plate heat exchanger principle

Double wall plate heat exchanger principle

The double wall plate heat exchanger plate is welded integrally with two thin plate pieces along the corner hole of each pair of plates. When the plate leaks, for example, the perforation caused by long time working will be easily detected from outside. Thereby it stops mixing between two materials.And at the same time, they plays very important roles towards warning internal leakage. Combined with the double seal of the gasket, the possibility of mixing two materials is avoided, and it is suitable for applications with high sanitary requirements or high safety and reliability of industrial production. Since the two sheets are welded to form a sheet, the heat transfer coefficient is inevitably lowered, but the highest safety is achieved in preventing materials mixing.
inquiry Chat Now
Product principle

The double wall plate heat exchanger plate is welded integrally with two thin plate pieces along the corner hole of each pair of plates. When the plate leaks, for example, the perforation caused by long time working will be easily detected from outside. Thereby it stops mixing between two materials.And at the same time, they plays very important roles towards warning internal leakage. Combined with the double seal of the gasket, the possibility of mixing two materials is avoided, and it is suitable for applications with high sanitary requirements or high safety and reliability of industrial production. Since the two sheets are welded to form a sheet, the heat transfer coefficient is inevitably lowered, but the highest safety is achieved in preventing materials mixing.



Maximum volume: 300m3 /h; Maximum design pressure: 25bar

Maximum temperature:150 celsius degree; Minimum difference in temperature:0.5-1 celsius degree

Nozzle diameter: DN25~DN150; Plate thickness:0.4mm

Gasket material: NBR, EPDM, HNBR,CR, VITON/FKM

Fixed and movable plate material: Carbon Steel, Stainless Steel, and others on request.

Plate material: AISI304, AISI316, AISI316L, Titanium,Ti-Pa,Hastelloy C276,254SMO,Nickel,AISI904L.

Features

The double wall plate heat exchanger avoids the mixing of the two materials during the process of use. It can be visually monitored when the medium leaks, and the equipment operation does not require pressure regulation. The plate can adopt materials of 304, 316L, titanium, nickel, C276, etc., to meet different working conditions of different media. Double plate for safer use. Compact structure, small footprint and high heat exchange efficiency. Easy to disassemble and maintain.

Range of application

Hygienic water , Purified water and water for injection medicament
