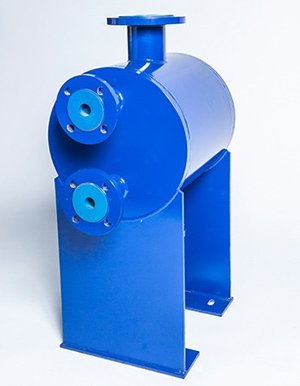

Plate And Shell Heat Exchanger
Product principle
The plate and shell heat exchanger adopts a circular corrugated heat exchanger plate that welded into a heat exchanger lathed bundle and combined with the structure of the pressure vessel shell. It also has a high heat transfer efficiency,compact structure and resistant to high temperature & pressure like shell tube heat exchanger. The plate and shell heat is durable under high temperature & pressure,large temperature difference and thermal shock, which is in a leading position in the industry.
Maximum volume:2500m3/h; Maximum design pressure:100bar
Maximum temperature:450 celsius degree; Minimum difference in temperature:0.5-1 celsius degree
Nozzle diameter:DN25~DN500; Plate thickness:0.8mm - 1.2mm
Fixed and movable plate material: Carbon Steel, Stainless Steel, and others on request.
Plate material:AISI304, AISI316L, Titanium,Ti-Pa,Hastelloy C276,254SMO,Nickel, AISI904L.
Features
-
-
Good quality raw material
The stainless steel raw materials meet international standards and are purchased from the same supplier as Valderus. The plate and shell heat exchanger has stable performance and low operating costs.
-
-
Advanced production technology & equipment
Adopting foreign advanced production equipment and welding technology. And the product integrates the advantages of plate heat exchanger, shell and tube heat exchanger, and spiral plate heat exchanger, and meets European CE and American ASME standards.
-
-
Stable plasma & laser welding technology
Using special plasma and laser welding technology, with high welding strengthm, stable quality, strong heat shock resistance, anti high pressure, and good safety performance.
-
-
Mold development, precision machining
With independent R&D and design of molds and precision processing capabilities, the circular plates are flat and uniform, with high precision, easy to weld, small welding stress and deformation, strong corrosion resistance, and long service life.
-
-
Advanced lab and customized solutions
Set up a research and development laboratory, with testing methods and testing equipment that meet international standards, capable of testing media components and raw material performance, and formulating targeted solutions.
-
-
Scientific design, rich in cases
A team of engineers with more than 20 years of experience, using the original selection database of foreign first-line brands, has actual cases for reference in complex and mixed media in various industries.
Product Display
-
ATW40-165R-50D
-
ATW40-165R-50W
-
ATW50-227R-100W
-
ATW150-650R-500D
Selection and Design
-
01
Our company has a set-up procedure for the selection and design of the Ruipute plate and shell heat exchanger. According to the specific working conditions provided by the user, the program can make the best selection design to meet this specific working condition, and we can provide the calculation data book and the heat exchanger dimensional sketch in time. Our company can design and manufacture Ruipute plate and shell heat exchanger according to PED or ASME specifications, and can provide corresponding qualification documents for design, manufacture, inspection, packaging, storage and transportation.
-
02
Qingdao Ruipute Plate and shell heat exchangers have been approved by relevant Chinese authorities, can be exported to many countries and delivered to users, also we can provide complete relevant documents.
-
03
Qingdao Ruipute plate and shell heat exchanger has been applied in many countries around the world, and has been recognized by many professional users. It is very distinctive in some industries.
Range of application
Refrigeration industry; chemical industry; pharmaceutical,food and beverage industry; mechanical matching oil cooler; energy and electricity; shipping industry; steel, metallurgy industry;district heating industry; textile industry; paper industry
