Feicheng sea crystal salinization using Ripple plate heat exchanger case

2019-05-14 16:28:00

Client Name: Shandong Feicheng Sea Water Crystal Salinization Co., Ltd.

Products: Plate heat exchanger

Specification parameters: AT200M-200m2

Plate is made of titanium, sealing gasket is EPDM, the condensate temperature is 125 degrees, and the brine is preheated from 50 degrees to 120 degrees.

Project Name: Preheating of brine

The titanium plate heat exchanger produced by our company is the first titanium plate heat exchanger in China that has been successfully used in the non-purified brine salt making process.

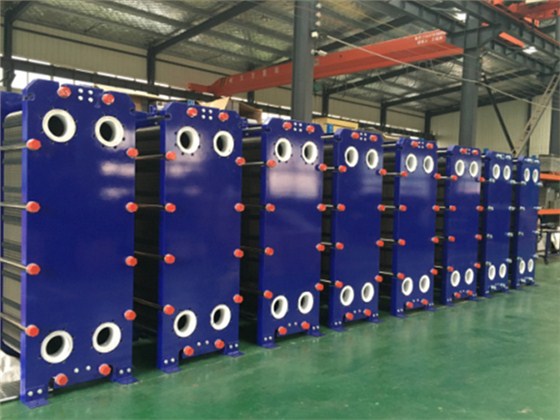

Plate heat exchanger

Gypsum type non-purified brine mechanical compression heat pump salt making process

The domestic well salt and salt production process mostly uses multi-effect evaporation and MVR (mechanical compression) salt production process. When coal prices are cheap, multi-effect evaporation is chosen, and a five-effect evaporation process is generally used. In places where coal prices are rising and steam is more expensive, the MVR salt making process is chosen. Regardless of which process is chosen, the brine from the well mine needs to be preheated, preheated with the system's condensate, preheated to the evaporation temperature, and then passed to the evaporation system. This effectively utilizes the heat of the condensed water and saves steam for heating.

Choosing a tubular preheater can not fully utilize the heat of the condensed water. At the same time, the tubular heat exchanger needs to select a large heat exchange area, and the flow rate between the tubes is low during the operation, which is easy to scale, the heat exchange tube should be cleaned regularly. It takes time and labor, and cannot be produced continuously. The plate preheater is chosen to fully utilize the heat of the condensate, and the 125 degrees condensate heats the brine to 123 degrees. This is especially important in the MVR salt making process.

The domestic brine form is generally north calcium and south nitrate, that is, the brine in the north contains more calcium and magnesium ions, the scale is mostly calcium sulfate, and the brine in the south is mostly nitrate type, that is, sodium sulfate is more. The brine is very fouled in the heat exchanger, so most manufacturers will use brine purification, which is to remove the fouling of the brine first, and then use the plate preheater. This increases the cost of salt production. Zigong Blu-ray Design Institute and us jointly researched, experimented, and repeatedly debugged, and finally replaced the tubular heat exchanger with a plate heat exchanger. The first use was in the gypsum-type non-purified brine mechanical compression heat pump process. There is only one success story. The plate preheater that has been disassembled and cleaned in the past needs 7 days but now can last for 30 days, ensuring normal use of the user and improving production efficiency.

REPEATER is a Chinese manufacturer that supplies high quality Plate & gasket for heat exchanger, plate heat exchanger. Advanced technology, product quality is equivalent to the level of international first-line brands. Lower product prices, higher cost performance.
