Product Feature

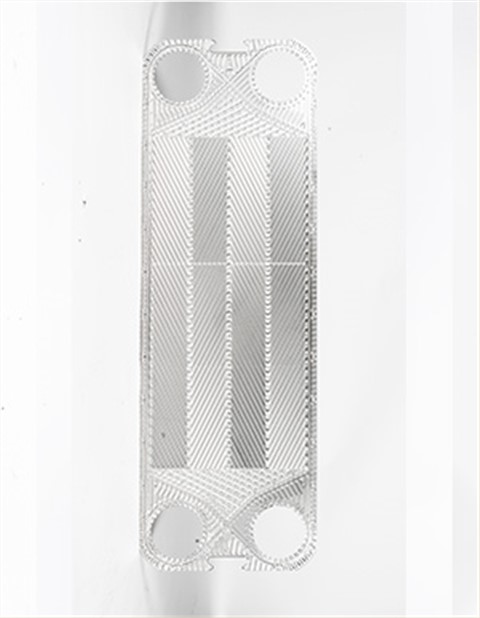

? Unique "Off-set" plate design, which can be combined into symmetrical or asymmetric flow channels to provide a more economical and reasonable heat exchanger.
? The plates have different corrugation angles, which can realize the thermal mixing design, achieve the best match between heat exchange effect and pressure loss, and improve the total heat transfer coefficient.
? Adopting advanced computer fluid dynamics to evaluate the heat transfer capacity of the corresponding plate type by simulating the flow rate and direction of the fluids, and continuously improve it to provide a highly optimized combination for the customer.
? All sealing gaskets have a double sealing function at the inlet and outlet, which can effectively prevent medium mixing. Easy to install ,clean and replace.
Product Model
| FUNKE model | |||||
| FP04 | FP14 | FP31 | FP60 | FP82 | |
| FP05 | FP16 | FP40 | FP62 | FP100 | |
| FP08 | FP20 | FP41 | FP70 | FP112 | |
| FP09 | FP205 | FP42 | FP71 | FP130 | |
| FP10 | FP22 | FP50 | FP80 | FP405 | |
