A replacement plate is a dimensioned part, not a commodity

When a plate heat exchanger loses capacity or starts to weep at the gaskets, new plates are usually ordered under time pressure — the unit is offline, production is waiting, and the quickest quote tends to win. That is exactly how a mismatched plate pack gets bought. A replacement plate is not interchangeable because it is made of stainless steel, or because it looks roughly the same shape. It fits only if it matches the installed plate across a set of dimensions and geometries that the eye does not register and a general data sheet rarely lists.

The good news is that specifying a replacement plate is a solved problem. It needs a method, a caliper, and about half an hour with one plate removed from the pack.

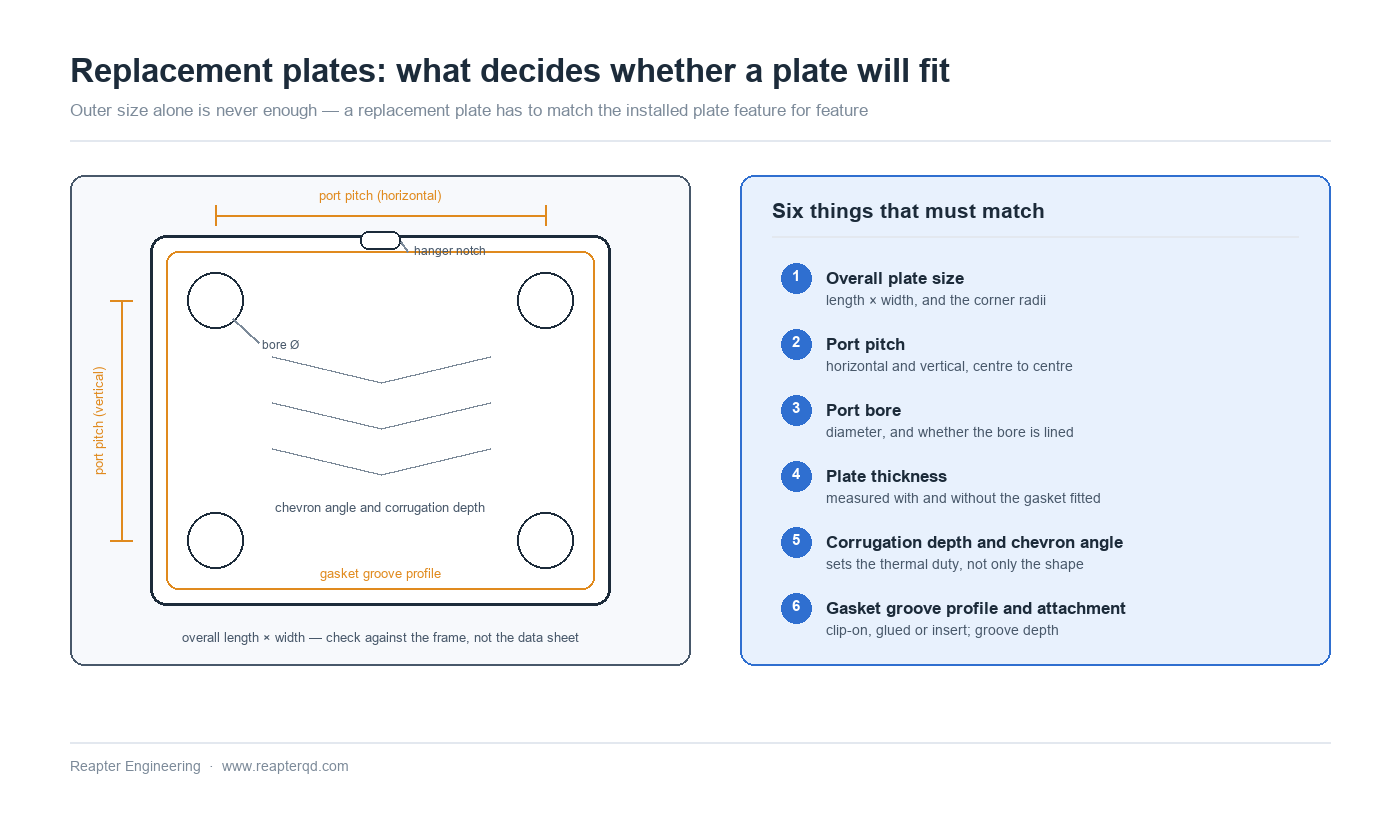

What actually has to match

A plate will only drop into an existing frame, hang on the carrier bar, and seal against the existing gaskets if all of the following agree with the plate that is coming out:

• Overall plate size. Length, width and corner radii — including the position of the hanger notch and the guide slots that locate the plate on the carrier bar and the fixed frame. A plate that is a few millimetres out changes how the pack closes and how the tie bolts take up.
• Port pitch, horizontal and vertical. The centre-to-centre distances between the corner ports must match, otherwise the ports cannot line up with the frame connections and the pack cannot be assembled at all.
• Port bore. Diameter, and whether the bore is lined or unlined, affect both flow area and the way the port gasket seats.
• Corrugation depth and chevron angle. These set the thermal and hydraulic behaviour of the channel. Two plates with identical outlines but different corrugation are two different products: one will start up at the wrong duty.
• Plate thickness. Commercial plates run roughly 0.4–1.0 mm. Thickness changes the compressed pack length — an existing frame may not take up the difference — and it changes the contact-point support that carries the pressure load.
• Gasket groove profile and attachment method. Clip-on, glued and insert gaskets each have a distinct groove geometry. A groove that does not match the gasket system will not seal, no matter how new the gasket is.

Reading the plate you already have

Start with the nameplate. The model, plate type, plate count, gasket type and build year on the frame nameplate are usually enough to identify the plate pattern — photograph it before anything else, even if it looks legible.

If the nameplate is missing, painted over, or belongs to a unit whose original manufacturer is no longer reachable, identify the plate physically. The procedure that works in the field:

1. Remove one plate and clean it. Deposits distort every measurement you are about to take.
2. Measure overall length and width with a caliper or steel rule, and note the corner radii.
3. Measure the port pitch — horizontal and vertical, centre to centre — and the port bore diameter.
4. Measure the plate thickness away from the corrugation contact points and the gasket, and again with the gasket fitted.
5. Photograph the corrugation pattern, the gasket groove and an edge view of the plate, and note how the gasket is attached.
6. Count the plates and record the pass arrangement and which ports are blind.

That set of measurements and photographs is enough to identify a plate pattern in the great majority of cases, and it travels well: it can be emailed to a supplier anywhere in the world and answered within a day.

Four ways to identify a plate, and when each one works

One clarification that avoids confusion later: for units originally supplied by other manufacturers, replacement plates are supplied on a compatible-replacement basis — produced to match the geometry of the installed plate, not sourced from the original equipment maker. A supplier who states this plainly and takes responsibility for dimensional fit is easier to work with than one who is vague about what is being quoted.

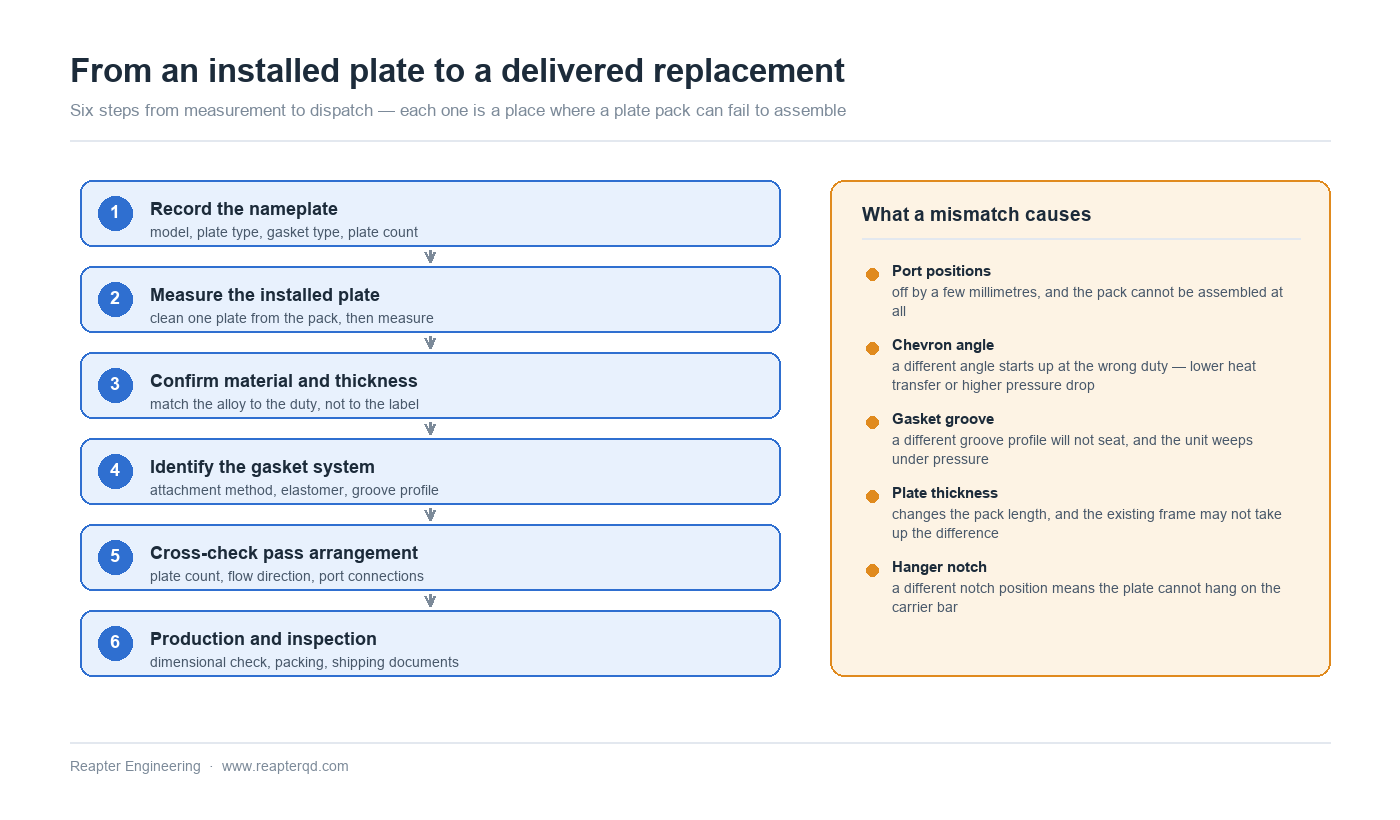

The sequence that avoids a failed order

Between the measurement and the delivery there is a short chain of steps, and each one is a place where an order can go quietly wrong. The consequences of skipping a step are not abstract — they are the reasons a plate pack sometimes cannot be assembled during the shutdown it was bought for.

Keeping the plant running: spares, gaskets and lead time

Plants that cannot tolerate an unplanned outage treat plates and gaskets as consumables, not as repair parts. Common practice is to hold a small percentage of the installed plate count as ready spares, plus a matching set of gaskets, identified during a planned opening rather than an emergency one. The identification work described above only needs to be done once; it pays back every time an order has to move quickly.

Gaskets deserve the same planning. Elastomers age on the shelf even unused: stored cool, dark and away from ozone — the storage conditions described in DIN 7716 — EPDM and NBR gaskets are typically good for several years. Date-stamp deliveries and rotate stock so that the oldest gaskets go into the pack first.

Lead time is driven mostly by material and gasket compound availability and by plate count, not by manufacturing speed. Plates ship as flat packs — a full pack for a mid-size unit fits on a single pallet — so urgent partial orders can move by air freight while full packs go by sea. Ask for packing documentation and material certificates with the shipment; a supplier who produces and inspects its own plates can supply them, and they are what turns a box of plates into a documentable spare part.

Common questions

Can replacement plates be mixed with the originals in one pack?
Only if they match the installed plate in every dimension listed above. When the geometry matches, topping up a pack with new plates is normal practice; when it does not, the pack will not close evenly and the tie bolts cannot be torqued properly. Mix like with like, and set the pack length according to the actual plate count.

The nameplate is unreadable — can the plate still be identified?
Yes, in most cases. Overall size, port pitch, port bore, corrugation depth and groove profile together identify a plate pattern reliably. A clear photo of the corrugation and the gasket groove, plus the three or four key measurements, is usually enough for a manufacturer to confirm the pattern.

Should we buy spares now, or wait until the unit is opened?
If downtime is expensive relative to the cost of a few plates, open the unit at the next planned shutdown, do the identification once, and hold spares. Waiting for an unplanned opening adds identification time and production lead time to the outage.

How long do gaskets last in storage?
Elastomers age whether or not they are installed. Under the cool, dark, ozone-free storage conditions of DIN 7716, EPDM and NBR gaskets are typically good for several years — long enough to hold spares, short enough that stock should be dated and rotated.

How Reapter supports installed units worldwide

Reapter manufactures gasketed plates and supplies compatible replacement plates and gaskets for installed units — including units originally supplied by other manufacturers. Orders are produced to the measured geometry of the installed plate, inspected dimensionally before dispatch, and shipped with packing documentation and material certificates on request. Our engineering team works from nameplate photographs and a handful of measurements, and returns a plate specification with the quotation.

If you have a unit that needs plates and no usable nameplate, send us the photographs and measurements described above — we will come back with an identified plate, the matching gasket, and a delivery schedule that fits your shutdown window.
