The gasket usually sets the temperature limit, not the plate

When a gasketed plate heat exchanger is specified, most of the attention goes to the plate: alloy, thickness, corrugation pattern. The plate alloy does set corrosion resistance, and it is the expensive part of the unit. But the item that decides how hot the exchanger can actually run, and how long it will stay leak-free between services, is usually the gasket. The elastomer is the softest material in the assembly, exposed to the process temperature on one side and ambient on the other, and compressed and released every time the plate pack is opened.

Gasket selection is not an accessory decision. Choose the wrong elastomer and the unit will be derated, weep along the plate edges, or need re-gasketing long before the plates are worn out — often on exactly the duty a different compound would have handled without complaint.

What the elastomer actually has to survive

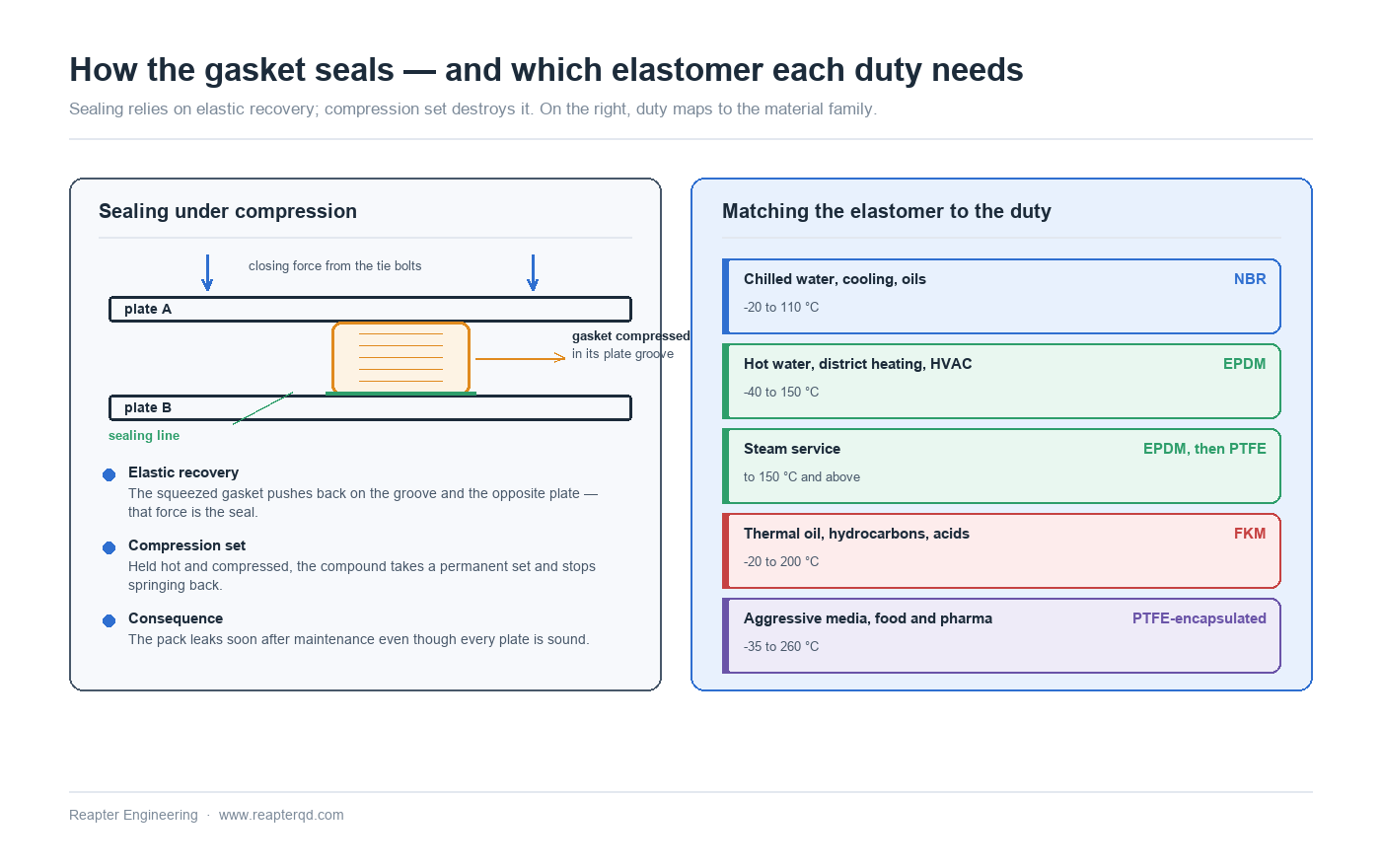

A plate heat exchanger gasket sits in a groove formed into the plate and is compressed between that plate and its neighbour when the pack is closed. Sealing depends on the gasket being squeezed by a known amount and pushing back against the groove and the adjacent plate, closing the leakage paths between the plate edge and the port ring. Three mechanisms erode that ability over time:

• Thermal ageing. Elastomers harden and lose elasticity faster as service temperature rises, and the relationship is not linear — a modest increase in temperature can remove a large share of the service life. This is why every elastomer carries both an absolute ceiling and a recommended continuous range below it.
• Chemical attack and swelling. The compound absorbs some of the medium, swells, and changes dimension and hardness. A gasket that swells can lift out of its groove and obstruct a channel; one that shrinks no longer seals at the plate edge.
• Compression set. Held compressed at temperature, an elastomer gradually takes a permanent set and stops pushing back. When the pack is reopened and re-closed, a gasket with high compression set has no force reserve left. Re-used gaskets are the most common cause of a pack that leaks immediately after maintenance.

The four families, and what each one is for

Almost every gasketed plate heat exchanger in service is sealed with one of four material families. Choosing between them is a question of temperature, medium and cleaning regime, in that order.

• NBR (nitrile rubber). The standard compound for water and for oils, hydrocarbons and many refrigerants. It has the lowest temperature ceiling of the common elastomers, so it belongs to chilled water, cooling circuits, lubricating and hydraulic oil systems, and refrigeration. It is not the answer for steam or hot thermal oil.
• EPDM (ethylene propylene diene rubber). The workhorse for hot water, district heating and steam up to its ceiling, and the most common food-contact choice because it tolerates CIP chemicals and is widely available in food-grade compounds. It is unsuitable for mineral oils and many hydrocarbons, in which it swells badly.
• HNBR (hydrogenated nitrile). Keeps the oil and hydrocarbon resistance of NBR and extends its temperature ceiling by roughly 40 °C, which covers hot oil circuits and refrigeration duties that run above what NBR allows.
• FKM (fluorocarbon) and PTFE-encapsulated gaskets. The high-temperature and aggressive-medium options — with an important split between them. FKM covers thermal oil, hydrocarbons, acids and many chemicals, but fluorocarbon elastomers degrade in hot aqueous service, so FKM is generally not the right choice for steam or hot water. PTFE-encapsulated gaskets place an inert fluoropolymer skin over an elastomer core and take over where EPDM and FKM both run out. Both cost materially more than EPDM and NBR, which is why they are reserved for the duties that need them.

The trade-off in numbers

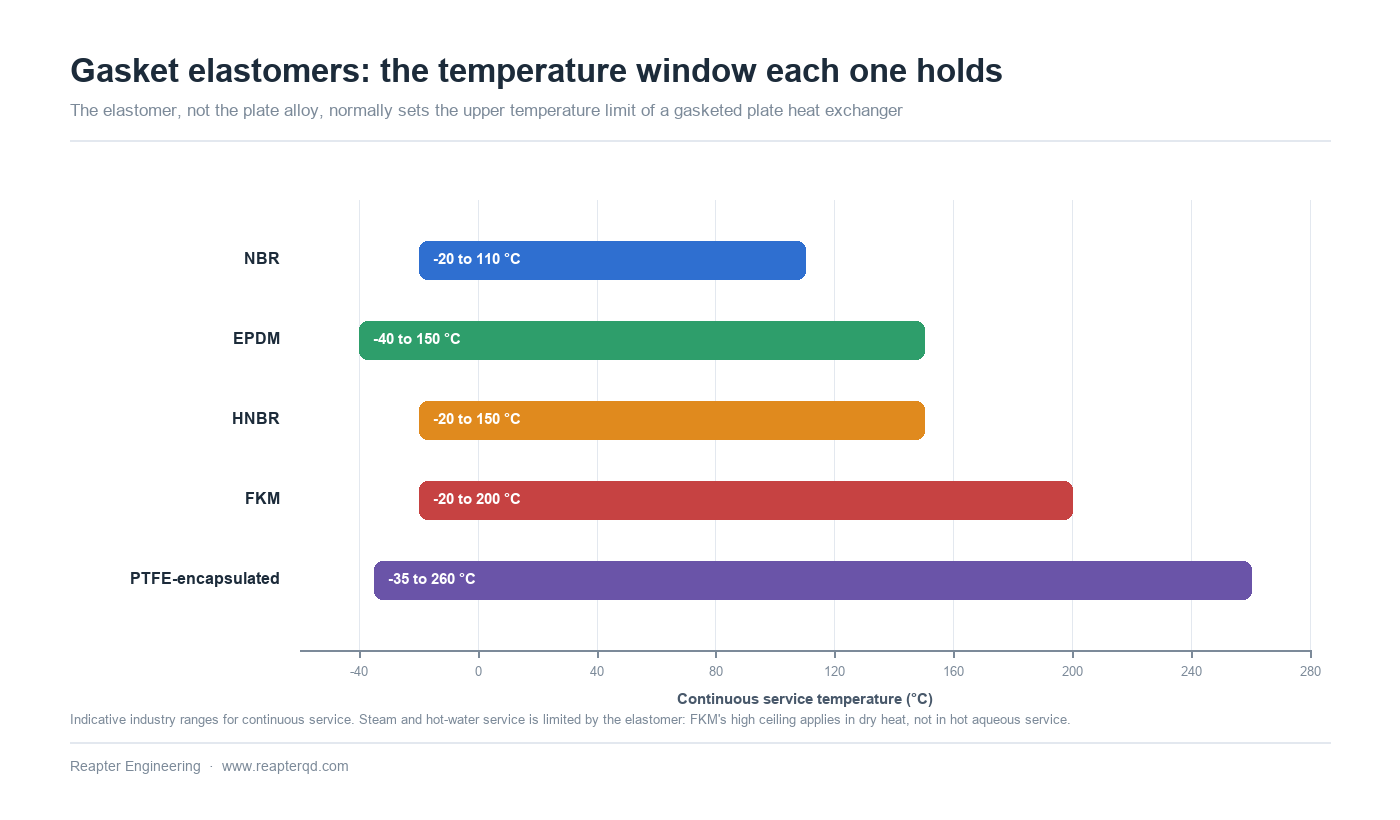

Typical service ranges are widely published and are worth comparing side by side before a duty is fixed. The bands below are indicative industry values for continuous service; they are not a substitute for checking the specific medium, its concentration, and the cleaning chemicals against a compatibility table.

Two points are easy to miss. First, the lower end of the range matters as much as the upper one: a gasket that goes glass-hard during a cold start will not seal in the first hour of operation, so hot-water duties with cold ambient starts still need the cold rating checked. Second, the cost column is not the price of a gasket, it is the price of the maintenance interval — a low-cost compound that fails after two seasons in a demanding duty costs far more than the higher-grade gasket that would have lasted.

Two attributes that override the numbers

Temperature range and chemical compatibility are not the whole story, and in two cases they are not even the deciding factor.

Steam service. Saturated steam combines high temperature with dry heat and is the classic case where the elastomer, not the plate, sets the limit of the unit. Plate exchangers on steam are normally specified with EPDM up to its ceiling; above that, a PTFE-encapsulated gasket takes over. Hot water behaves differently from steam at the same temperature, and the two should never be treated as interchangeable when the gasket is selected.

Hygiene and food contact. For food, beverage and pharmaceutical duties the gasket must be available in a food-contact grade and must survive the CIP regime, which is often more aggressive than the process itself. EPDM in a food-grade compound is the usual answer; where the cleaning chemicals or the product rule EPDM out, a PTFE-encapsulated gasket takes over. The material certificate should be requested when the order is placed, not after the first inspection.

A practical selection sequence

1. Fix the design temperature on both sides, including the cleaning cycle and any cold-start condition — not just the normal operating point.
2. List the media on both circuits with their concentrations, and list the cleaning chemicals used. Compatibility is checked against all of them, not only the process fluid.
3. State whether the duty is steam, hot water or thermal oil, and at what pressure. Steam at a given temperature ages a gasket differently from liquid water.
4. Choose the elastomer family from the table above, then confirm the specific compound and whether a food-contact or other certification is required.
5. Match the gasket system to the plate — glued, clip-on or glue-free — and confirm that the retention method suits how often the pack is opened for cleaning.
6. Confirm shelf life and storage, and order enough gaskets to complete the pack from a single batch, so that a mixed-age pack is not created at the next service.

Fitting, storing and replacing successfully

Most gasket failures found on site are not material failures at all. Re-using gaskets that have already taken a compression set, bonding clip-on gaskets in place, clamping a pack that mixes old and new gaskets, or storing gaskets for years in sunlight and ozone before fitting — between them these account for a large share of repeat leaks. Gaskets should be replaced as a complete set, kept in their packaging away from heat, light and ozone, and fitted with the retention method the plate was designed for, so that the gasket stays in its groove while the pack is closed.

Common questions

Can different gasket materials be mixed in one plate pack?
Not on a circuit that has to seal reliably. Different elastomers compress and recover differently, so a mixed pack is clamped unevenly and the weakest gasket sets the behaviour of the whole pack. Replace gaskets as a set, and if a different compound is being introduced, introduce it for the whole pack.

Why did our EPDM gaskets fail in an oil circuit?
EPDM has poor resistance to mineral oils and many hydrocarbons and swells in them. Oil and hydrocarbon duties belong to NBR or HNBR, or to FKM where the temperature is high enough to rule those out.

Can gaskets be re-used after a cleaning shutdown?
Only if they are still elastic and have not taken a permanent set. Once a gasket has been held compressed at temperature, the safe assumption is that it will not seal again. A set of gaskets costs far less than an unplanned shutdown.

What decides the temperature limit, the plate or the gasket?
On a gasketed unit it is almost always the gasket. A stainless or higher-alloy plate will tolerate temperatures well above any elastomer, so the gasket becomes the controlling item and should be chosen before the duty is fixed.

Is a clip-on gasket the same as a glued gasket?
No. Clip-on and glue-free systems hold the gasket mechanically in its groove, which makes the pack faster and more predictable to reassemble and removes the adhesive as a failure point. Glued gaskets are bonded to the plate. The plate and the gasket system must match, and the two retention methods cannot be combined on one plate.

How Reapter supports gasket replacement worldwide

Reapter supplies plate heat exchanger gaskets in EPDM, NBR, HNBR, FKM and PTFE-encapsulated compounds, produced to the geometry of the plate they seal — including plates originally supplied by other manufacturers, where gaskets are supplied on a compatible-replacement basis matched to the installed plate. Material certificates are available on request, and food-contact grades can be supplied where the duty requires them.

For units already in service, send us the plate model, the medium on each circuit and the design temperature, and we will confirm the elastomer, the gasket system and a delivery schedule that fits your maintenance window — wherever the unit is installed.
