Plate and Shell vs Shell and Tube: Choosing the Right Exchanger

Return list Reffer:Reapter
Plate and Shell vs Shell and Tube: Choosing the Right Exchanger
Click number:- Release time:2026-10-14

Two designs, one question: which exchanger fits the duty?

Shell and tube heat exchangers have been the default industrial choice for more than a century. Plate heat exchangers displaced them in a large share of duties over the past fifty years by offering far higher heat transfer coefficients in a fraction of the footprint. Between those two well-known options sits a third design that is frequently overlooked in early-stage selection: the plate and shell heat exchanger.

A plate and shell unit is, as the name suggests, a hybrid. It uses the plate geometry of a plate heat exchanger — thin, corrugated plates with high thermal efficiency — but welds them into a sealed plate pack that sits inside a cylindrical shell. The result is a unit that keeps much of the thermal performance of a plate exchanger while removing the component that limits both: the gasket.

Understanding where that hybrid wins, and where it does not, is worth fifteen minutes of any specification engineer's time. Choosing the wrong family is expensive to correct: the unit is not a component that can be modified later.

What actually differs

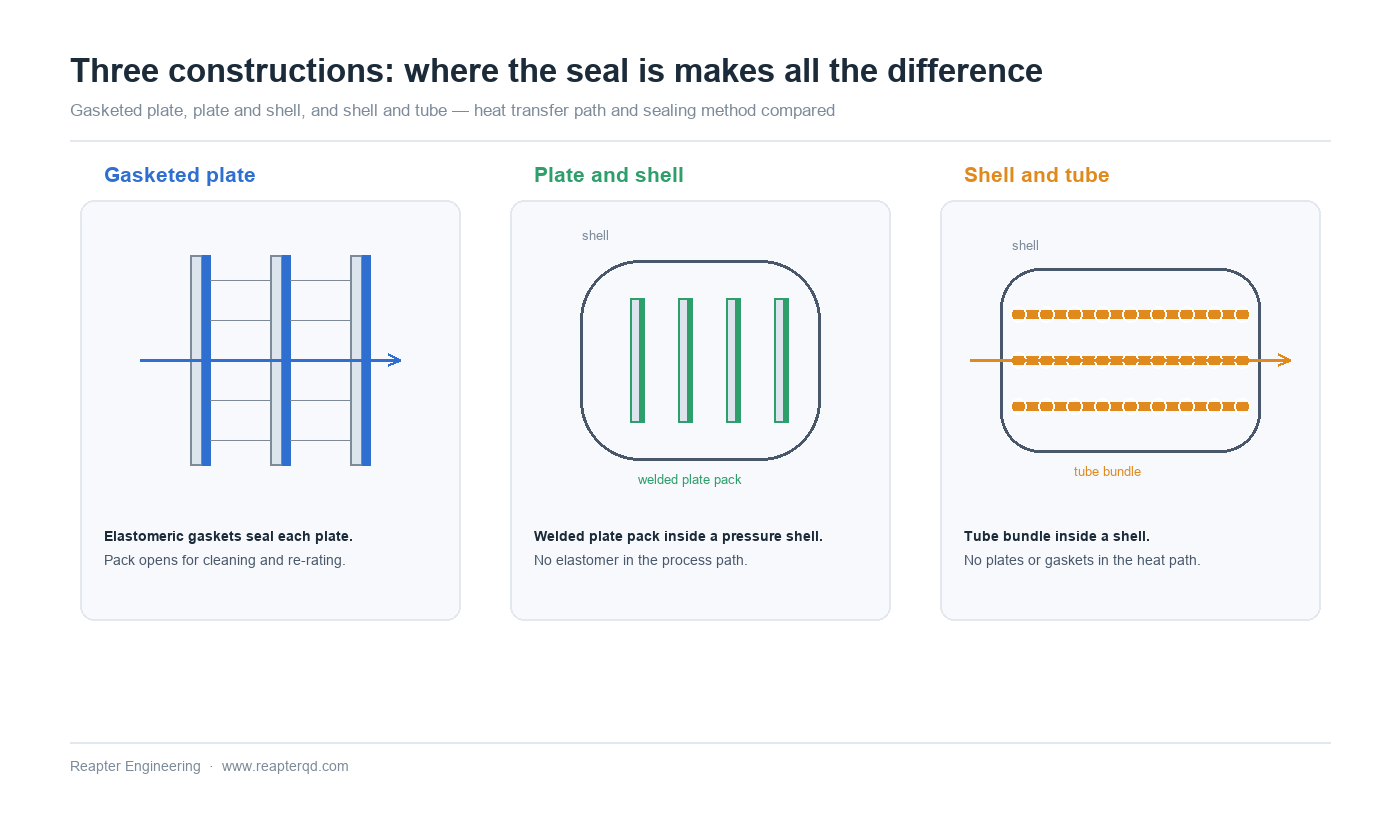

Construction comparison of gasketed plate, plate and shell, and shell and tube heat exchangers

All three families transfer heat through metal surfaces separating a hot and a cold stream. The differences that matter in selection are in how the plates are held together and sealed:

Gasketed plate heat exchanger. Plates are clamped between two frames and sealed with elastomeric gaskets. The pack can be opened for inspection and cleaning, and plates can be added or removed to change capacity. The gasket sets the temperature and pressure ceiling, and it is a wear item that will eventually need replacing.

Plate and shell heat exchanger. Plates are welded into a sealed pack — no gaskets in contact with the process — and the pack is enclosed in a pressure shell. The gasket limitation disappears, which raises the operating envelope in both temperature and pressure. The trade-off is that the pack can no longer be opened for mechanical cleaning.

Shell and tube heat exchanger. One stream flows through tubes, the other across them inside a shell. It uses no gaskets or plates at all in the heat transfer path, tolerates extreme pressure and temperature, and can be cleaned mechanically tube by tube. Its thermal efficiency per unit of surface area is substantially lower, and the physical size required to achieve a given duty is correspondingly larger.

Where the plate and shell design wins

The case for a plate and shell unit rests on three characteristics:

  • High temperature and pressure, without gaskets. Because the seal is welded rather than elastomeric, the operating ceiling is set by the materials and construction rather than by an elastomer's temperature limit. This is the decisive advantage for steam duties, thermal oil circuits, and high-pressure process streams where a gasketed unit would need frequent gasket replacement — or would not be suitable at all.
  • Compactness relative to shell and tube. The corrugated plate geometry produces turbulent flow at low velocities, so heat transfer coefficients remain high. For the same duty, a plate and shell unit typically occupies a fraction of the volume and weight of a shell and tube exchanger, which matters directly in retrofits where floor space and structural loading are fixed.
  • Safety in service. With no elastomer in the heat transfer path, there is no gasket that can degrade, harden, or leak over time. For hazardous media — hydrocarbons, ammonia, aggressive chemicals — this removes an entire class of failure mode and the associated maintenance intervention.

Where shell and tube still wins

The plate and shell design is not a universal replacement, and a specification that treats it as one will eventually fail:

  • Very large flow rates. Above a certain duty size, shell and tube units scale more economically. Plate-based designs are strongest in the small to medium range.
  • Fouling media requiring mechanical cleaning. Because a plate and shell pack is welded, cleaning is chemical only. Duties with heavy scaling, fibrous solids, or crystallising media are better served by a design that can be opened and rodded.
  • Extreme pressure. Shell and tube construction tolerates pressures beyond the practical range of plate-based designs.
  • Very high temperature differences and thermal cycling. Tube bundles accommodate thermal expansion more forgivingly than a welded plate pack in some severe cycling duties.

Comparison at a glance

Gasketed plate Plate and shell Shell and tube
Thermal efficiency per unit area Highest High Lower
Temperature ceiling Set by gasket Set by materials Very high
Pressure ceiling Moderate High Highest
Mechanical cleaning Yes — pack opens No — chemical only Yes — tube by tube
Footprint for given duty Smallest Small Largest
Capacity adjustable on site Yes — add plates No No
Gasket maintenance Periodic replacement None in process path None

A practical selection sequence

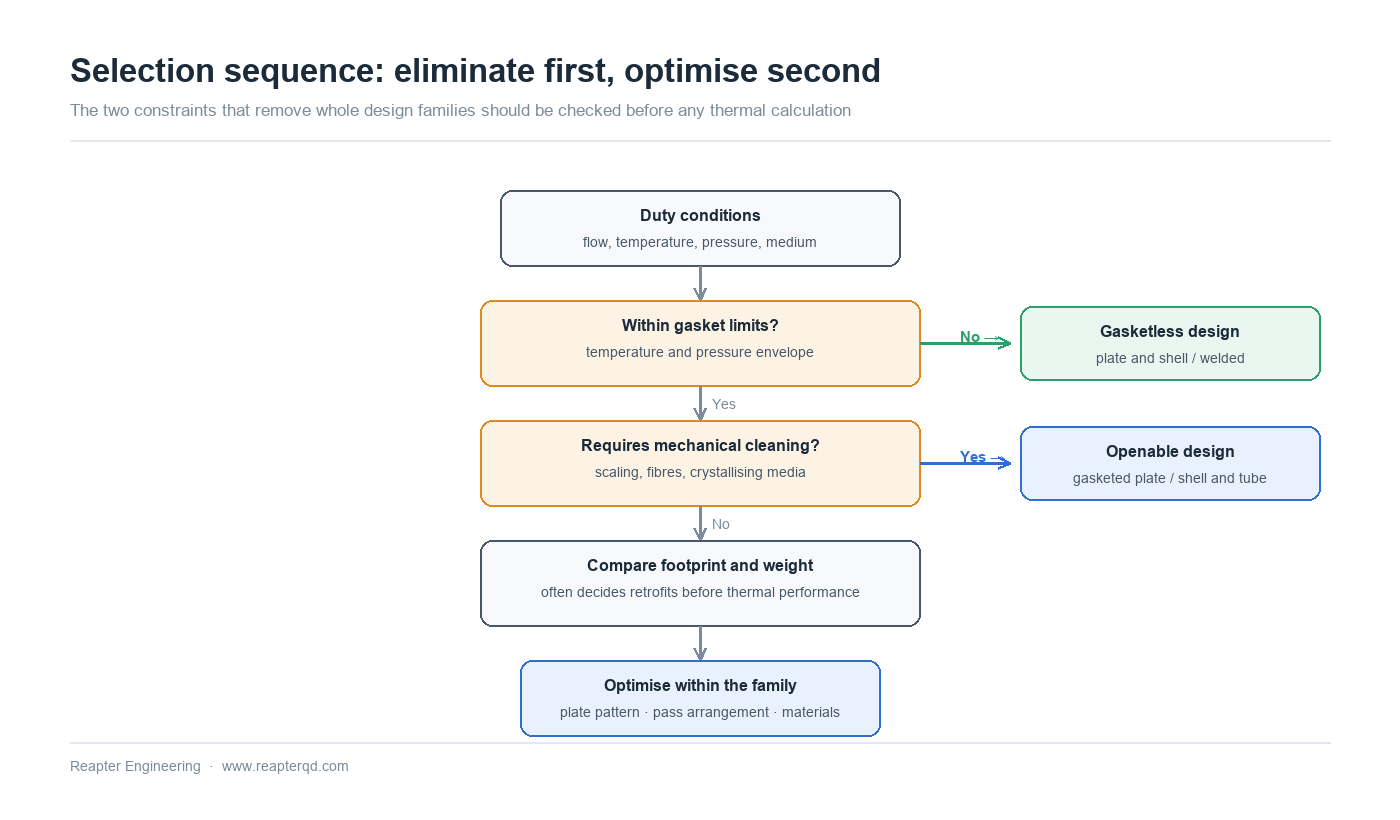

Selection decision path: eliminate design families on gasket limits and cleaning requirements before optimising

  1. Start with the two constraints that eliminate options. Maximum temperature and maximum pressure. If the duty exceeds gasket limits, the gasketed plate design is out before any thermal calculation is done.
  2. Then assess the medium. If it scales, crystallises, or carries solids, favour a design that can be cleaned mechanically. If it is hazardous, favour a design with no elastomer in the process path.
  3. Then compare on footprint and weight. In a retrofit, available space and structural loading often decide the family before thermal performance does.
  4. Only then optimise within the chosen family — plate pattern, pass arrangement, and materials.

Working in this order prevents the most common specification error: optimising thermal performance within a design family that was never suitable for the duty in the first place.

Common questions

Can a plate and shell exchanger be repaired if it leaks?
Yes, but it is a workshop operation rather than a site maintenance task. The pack is welded, so repair requires cutting and re-welding in controlled conditions. This is a genuine consideration for remote installations.

Is a plate and shell unit more efficient than a shell and tube unit?
In most comparable duties, yes — the corrugated plate geometry produces higher heat transfer coefficients, so less surface area is needed. But efficiency should be compared at equal pressure drop, not equal surface area; at matched pumping power the advantage narrows.

Can a gasketed unit be converted to plate and shell later?
No. They are different constructions, not different configurations of the same unit.

How Reapter approaches plate and shell design

Reapter manufactures plate and shell heat exchangers alongside gasketed, semi-welded, and double-wall designs, which allows us to recommend the family that suits the duty rather than the one we prefer to sell. For plate and shell packs, our welding process is developed and controlled in-house — the plate-to-plate seal, rather than the shell, is the technically demanding part of this construction, and it is where unit reliability is determined.

If you are weighing a plate and shell unit against a shell and tube design for a high-temperature or high-pressure duty, send us the process conditions and we will return a comparison with the reasoning made explicit.
