Why plants pipe plate heat exchangers in banks

A single plate heat exchanger sized for the full duty is the cheapest option on paper: one frame, one set of spares, one item to install. Plants that cannot tolerate an unplanned stop rarely buy one big unit. They buy a bank - two or more exchangers piped in parallel, each sized for a share of the flow, with valves that let any unit be isolated while the rest keep running. The logic is the same whether the plant is a district heating substation, a data centre cooling distribution loop, or a food factory running two shifts: maintenance windows are short, spare plates and gaskets take weeks to arrive, and a bank turns a hard stop into a routine changeover.

Banks also solve a quieter problem: transport and installation. Large frames are heavy and need crane access; two or three smaller units can be rigged into constrained plant rooms, shipped in standard containers, and lifted with lighter equipment. For exported skids and packaged plant rooms, this alone often decides the configuration.

What N+1 actually buys you

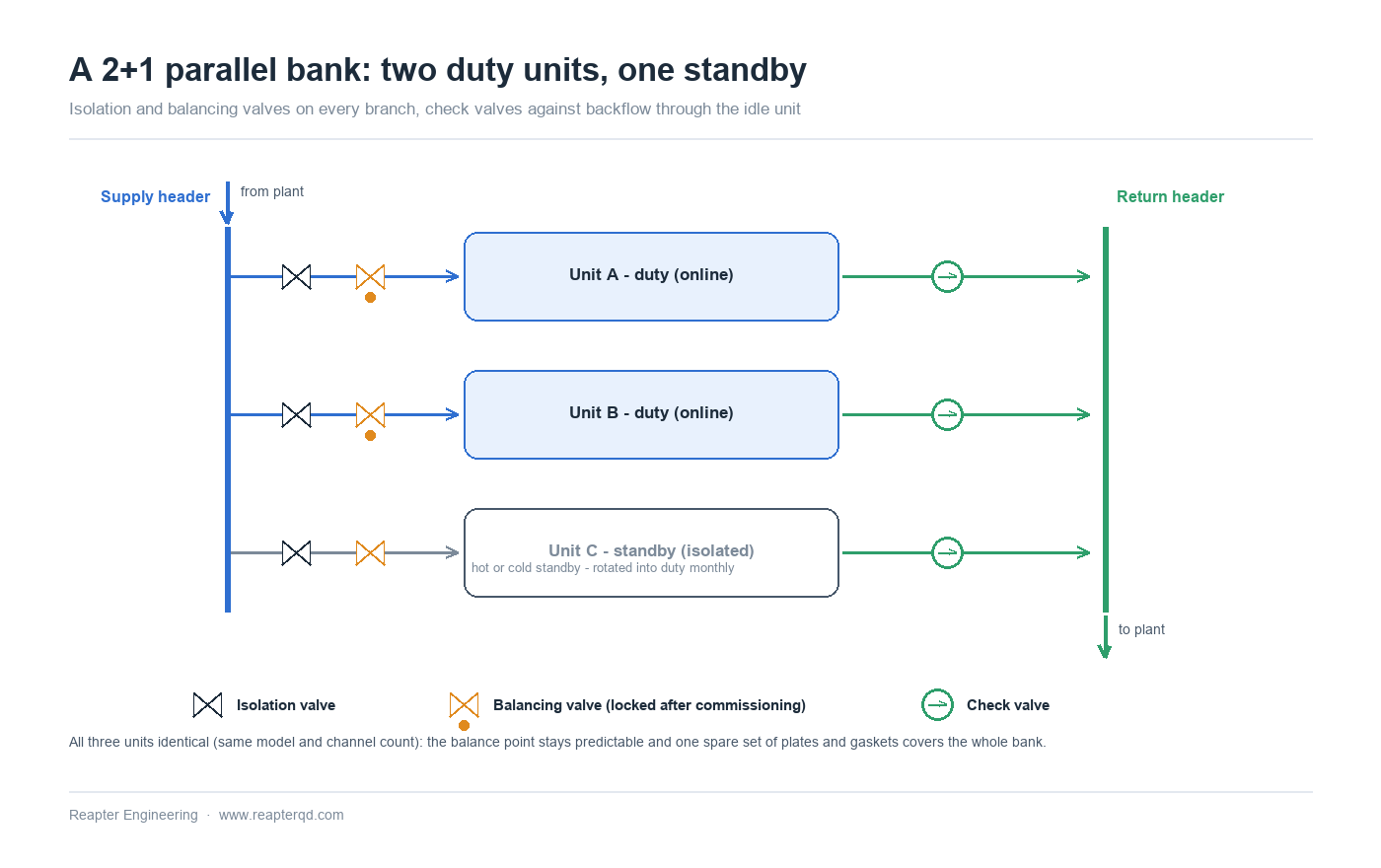

The notation N+1 means N units carry the full duty and one additional unit stands by. A 100% duty served by three 50% exchangers with one more installed is a 2+1 bank: two units run, one is isolated. If a plate pack needs a gasket change or a mechanical clean, the standby is valved in and the process never sees the event.

Two standby philosophies exist, and the choice affects piping and controls:

• Cold standby. The spare sits isolated, drained and vented at ambient temperature. Bringing it online takes minutes and introduces a slug of cold fluid into the return line - acceptable for HVAC and most utility duties, less so where the secondary temperature must stay within a tight band.
• Hot standby. The spare is flooded, pressurised and held at zero or trickle flow behind closed valves. Changeover is near-instant and thermal shock is minimal. This is the default for pasteurisers, seawater cooling on sensitive processes, and continuous production lines.

A standby that sits untouched for a year is not really a spare. Elastomer gaskets take a compression set at rest, and small leaks tend to appear at first re-start. Rotation - bringing the standby into duty on a schedule so run-hours are equalised - keeps plates and gaskets evenly aged and proves the standby actually works.

Flow balancing: where parallel banks go wrong

Parallel units share the duty only if they share the flow. Three failure patterns show up repeatedly in the field:

Undersized or asymmetric headers. If the common header velocity is high, the branch nearest the inlet sees a higher static pressure than the far branch and takes more than its share of flow. Keep header velocities low, use the same branch diameter everywhere, and mirror the layout so branch lengths match. A symmetric tee arrangement is worth more than any amount of post-commissioning adjustment.

Balancing valves left at random settings. Every branch needs a balancing valve. It is set once, at commissioning, with the units at design flow and the standby line proving its design flow too - then locked. A branch with less resistance pulls more flow, runs the wrong temperature on the secondary side, and quietly takes the neighbouring unit below its design velocity, where fouling accelerates.

No check valves. An isolated standby with an open return connection is a parallel path waiting to be used - backwards. Depending on the pressure balance, flow can recirculate through the idle unit, doing no useful work and cooling the return line. A check valve on each unit outlet closes that path permanently.

Identical units matter as well. When every unit in the bank is the same model with the same channel count, the balance point is predictable and one spare set of plates and gaskets covers the whole bank. Mixing different sizes in parallel invites each unit to find its own duty point.

The trade-off in numbers

Reading the table: a 1+1 bank of full-size units is the simplest redundancy - any single unit carries everything - but each frame is large, and plate velocity runs high at full duty with correspondingly high pressure drop. A 2+1 bank of 50% units halves the frame size, gives finer staging at part load and keeps transport manageable, at the cost of more valves, more gaskets and two headers to balance. A 3+1 arrangement refines staging further and suits duties with long part-load periods. More units also mean more gasketed joints to maintain - past roughly four or five units, the added complexity usually stops paying for itself unless the duty profile genuinely needs the granularity.

Staging and turn-down at part load

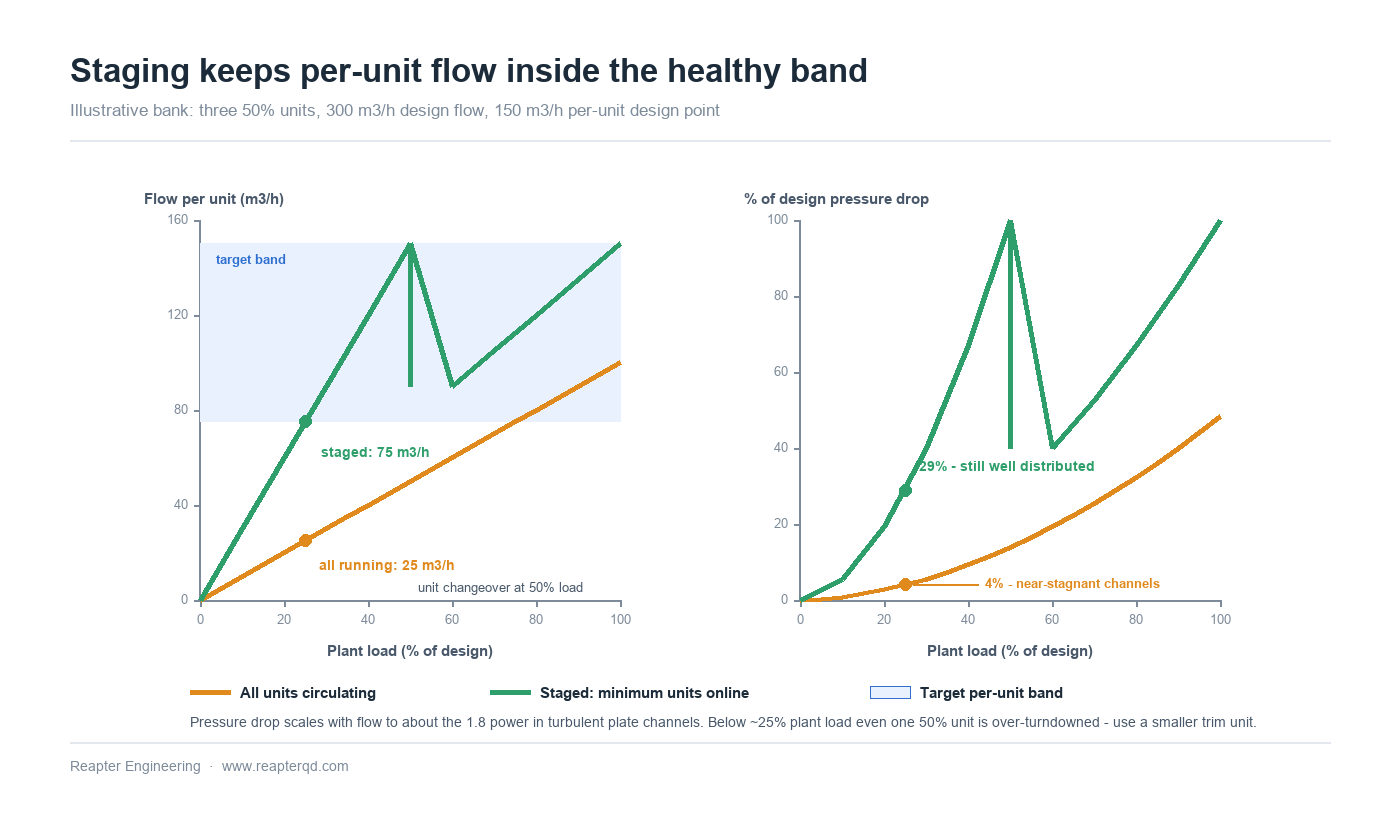

The control decision at reduced load is how many units stay online. Consider the 2+1 bank from the table: design flow 300 m3/h, each unit designed for 150 m3/h. If all three units circulate regardless of load, per-unit flow collapses: at 25% plant load each unit sees about 25 m3/h, barely 17% of its design point. Pressure drop falls to roughly 4% of design, because pressure drop in turbulent plate channels scales with flow to about the 1.8 power. Flow that low barely turbulates the channels, maldistribution across the plate pack grows, and fouling risk rises exactly when velocities are at their worst.

Staging keeps each online unit inside its healthy band. One unit carries the load up to 50% of design flow; beyond that a second unit is added and per-unit flow steps back down before climbing again. At 25% plant load a single staged unit still sees 75 m3/h and about 29% of design pressure drop - same plant load, seven times the wall shear compared with running everything.

Below roughly 25% of plant load, even one 50% unit is over-turndowned. The usual answers are a smaller trim unit dedicated to night and weekend loads, a controlled bypass on the secondary side, or simply accepting short excursions at low velocity in duties that tolerate them. Staging logic should also include a dead-band around each changeover point, so units do not hunt on and off when the load sits near a switching threshold.

A practical decision sequence

1. Cost the outage first. If an unplanned stop is expensive or unsafe, an N+1 bank is justified almost regardless of capital premium; if not, a single unit or an N arrangement may be honest economics.
2. Choose the unit share - 100%, 50% or smaller - based on standby depth, how fine the part-load staging must be, transport and lifting limits at the site, and the spares commonality you want.
3. Size headers for low velocity and mirror the branch piping. Specify identical units.
4. Fit each branch with an isolation valve and a balancing valve on the inlet, a check valve on the outlet, and its own drain and vent connections.
5. Decide hot or cold standby, and write the rotation schedule into the maintenance plan rather than leaving it to memory.
6. Set staging logic with a dead-band and a minimum per-unit flow floor; verify the floor against the fouling strategy for the water quality on site.
7. At commissioning, balance at design flow, record every valve setting, lock the handles, and log the clean pressure drop of each unit as the baseline for future fouling trends.

Common questions

How much extra does an N+1 bank cost? Roughly the price of one additional exchanger plus headers, valves and controls. Whether that premium pays back depends entirely on what an unplanned outage costs per hour - in lost product, contracted penalties or safety consequences - which is why the decision starts there, not with the exchanger catalogue.

Can a second unit be added to an existing single exchanger later? Usually yes, but it is far cheaper to make provision early: space, header tees with blank flanges, and a control system that can take a second unit. Retrofitting headers onto crowded plant rooms is rarely elegant.

Do the units in a bank need to be identical? Strongly recommended. Identical models keep the balance point predictable, simplify staging logic, and let one set of spare plates and gaskets cover every unit in the bank.

What flow should the standby carry? Either zero, fully isolated, or a hot-standby trickle - but never an open connection without a check valve, and never a partial flow that lets the unit sit at low velocity, which is where fouling and gasket problems start.
